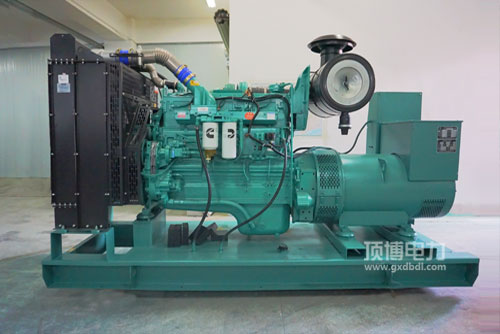

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用发起机汽油区域效益性好: 比较好的的汽油操纵操作控制电路，特有的STC、ESTC 级别划分操纵操作控制电路，特种的设计的活塞件上边焚烧室，超高压压喷射汽油，做好吸雾，焚烧做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用发起机瞬态性能指标优秀: 好的发起机整体风格设置，加上康明斯的难忘的EFC体统，把控好精确高，崩溃时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用启思想升工作功率高: 综合设置紧凑型轿车.外观布置房间合情合理，正常运行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50够满足中国人非道路上第3过程及北美洲Tier2. Tier 3尾气排放标准标准标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可求性好， 热车机执行及维持清洗便利店，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率位置 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯来发电用热车机的特性：表面积小， 压解比低， 格栅板的空气加熱，非常易重新启动，中国移动车载一体机电源模块的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	通用电机功率(kW)Prime Power	备用电源电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
